工業檢測光學鏡頭 / CS-Mount
F940 series(長焦)

No. FR-TH-F940


Theia SL940 Series

F940 series of TELEPHOTO

簡介

F940 是可以針對很遠的不顯眼的地方,做長焦距放大物體。

F940 是一種高品質的鏡頭設計,可以充分利用高解析度的HD百萬畫素的相機。該鏡頭可以用於相機上,提供使用者從邊緣到邊緣清晰的影像。

該鏡頭提供 True Day / Night 相機 IR 校正。IR 校正的重點,從人工照明的紅外光、可見光,使影像保持在焦距時, Day / Night 相機切換到夜晚模式到在同一平面上。沒有IR校正的鏡頭,夜間影像將不會聚焦在IR照明上。

特色

  • 9-40mm for long reach and field of view optimization
  • Supports multi megapixel resolution cameras for demanding applications of five megapixels or more
  • Compact design to fit into domes as small as 4” mini-dome size
  • IR corrected for true Day/Night cameras
  • CS-mount with slip ring for ease of installation and positioning
  • For 1/3”, 1/2.7” HD, 1/2.5” and 1/2.3” 4K* sensors
  • Designed with DC auto-iris, P-iris (precise iris) and manual iris versions

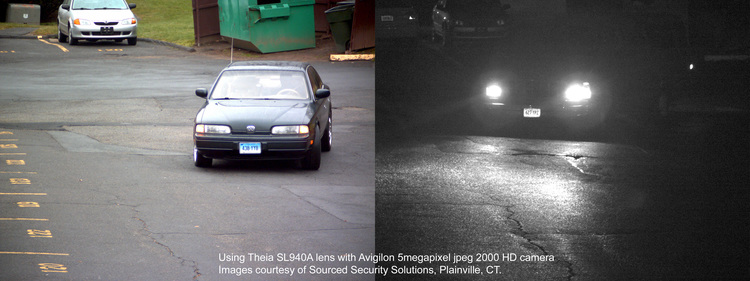

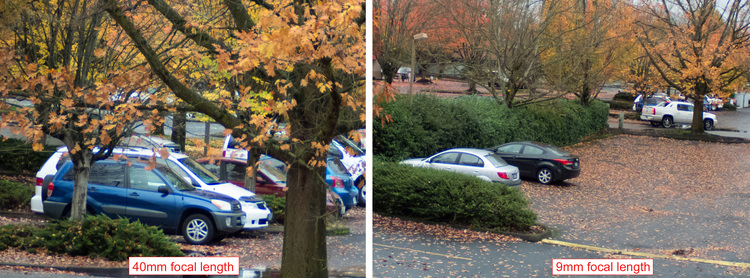

範例

規格

F940 series lenses

Lens model 940SAT 940SPT 940SMT
Iris type DC autoiris P-iris Manual iris
Focal length 9 mm - 40 mm
IR correction Day / Night
Mount type CS-mount
F/# F/1.5 to closed
Resolution Up to 5 megapixel, 4K compatible
Minimum focus 2.5 m - infinity
Lens length < 50 mm

Lens Field of view

Sensor size 1/3" 1/2.7" HD 1/2.5" 1/2.3" 4K*
Sensor diagonal Ø6.0mm Ø6.6mm Ø7.2mm
Sensor format 4x3 HD (16x9) 4x3

Field of view (H) 30° - 7.1° 37° - 8.6° 36° - 8.5° 39° - 9.2°
Field of view (V) 22° - 5.3° 20° - 4.8° 27° - 6.3° 19° - 4.6°
Field of view (D) 38° - 8.8° 42° - 9.9° 46° - 10.6° 44° - 10°
*4K format = 4000 x 2000 pixels
